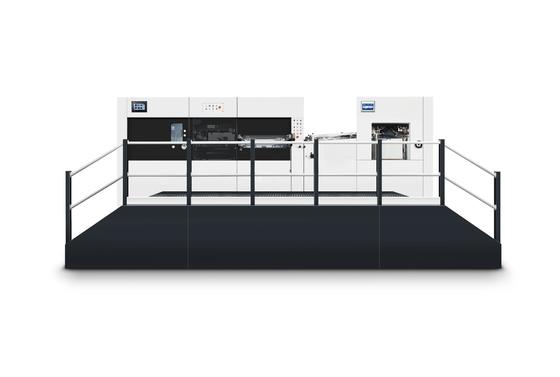

Easy Setup Automatic Die Cutting Machine Industrial Die Cutter For Trademarks
| Place of Origin | CHINA |
|---|---|
| Brand Name | FINTEECH |
| Certification | CE |
| Model Number | FB-HT1060ACER |
| Minimum Order Quantity | 1set |
| Packaging Details | wooden case |
| Delivery Time | 20-30 days |
| Payment Terms | TT/LC |
| Supply Ability | 10 sets per day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warranty | 1 Year,2 Years,One Year,3 Years | After-sales Service Provided | Engineers Available To Service Machinery Overseas,Video Technical Support,Field Installation,commissioning And Training,Online Support |
|---|---|---|---|
| Condition | New | Type | Die-cutting Machine,Paper Cutting Machine,Label Cutter,Other,Packing Machine |
| Computerized | Yes,Semi-Automatic,No | Product Name | Automatic Roll Film/ Mylar/Aluminum Foil Die Cutting Machine,automatic Paper Die Cutting Punching Machine Price,BASCOCUT Multi Sheet Cutter,Automatic Rotary Die Cutting Machine For Corrugated Carton Box,small Size Die Cutting Machine |
| Function | Die Cutting,stamping,Automatic Die-cutting Machine In Electric Field,Manual Creasing,High Effieciency | Name | Die Cutting Machine |
| Usage | Sticker,trademark,Food Forming Machine,label,heat Transfer Industry | Automatic Grade | Automatic,Semi-Automatic |
| Color | Requirement,Optional Color | ||
| Highlight | Easy Setup Automatic Die Cutting Machine,Trademarks Automatic Die Cutting Machine,Trademarks Industrial Die Cutter |
||
Product Description
Automatic Die Cutting Machine with Stripping
Product Overview
High-performance automatic die cutting machine designed for precision cutting and stripping of various materials including paper, film, and corrugated board. Features advanced automation and precision engineering for industrial applications.
Key Features
- Precision Feeder: Handles materials from 90g/m² thin paper to 1000g/m² cardboard and micro flute corrugated board
- Non-contact Detection: Ultrasonic double sheet detector prevents material scratching
- Quick Setup: Center-line system with quick locking device reduces make-ready time
- Advanced Plate System: 5mm hardened cutting plate with micro adjustment capability
- High-Efficiency Operation: Auto non-stop collecting device switches automatically for continuous production
- Premium Components: Germany Becker oil-free blower and vacuum pump
- Automated Maintenance: Concentrated auto lubrication system for all driven parts
Technical Specifications
| Model | FB-HT1060ACER |
|---|---|
| Maximum Sheet Size | 1060×760mm |
| Minimum Sheet Size | 400×350mm |
| Maximum Cutting Size | 1060×745mm |
| Stock Range | Paper: 80-2000g/m² (0.1-2mm), Corrugated board: up to 4mm |
| Die Cutting Precision | ≤±0.075mm |
| Maximum Working Speed | 8000 sheets/hour |
| Total Power Required | 23KW |
| Machine Dimensions (L×W×H) | 8017×4518×2502mm |
| Net Weight | 22T |
Product Attributes
| Warranty | 1-3 Years |
|---|---|
| After-sales Service | Overseas engineer support, video technical support, field installation, commissioning and training, online support |
| Type | Die-cutting Machine, Paper Cutting Machine, Label Cutter, Packing Machine |
| Automation Grade | Automatic/Semi-Automatic |
| Functions | Die cutting, stamping, creasing, high-efficiency processing |
| Applications | Stickers, trademarks, labels, heat transfer industry, food packaging |
| Color Options | Customizable |
