Automatic Pre-coated Film Laminating Machine Electromagnetic Oil Heating Hot Knife Cutting System High Speed Production

  • Automatic Pre-coated Film Laminating Machine Electromagnetic Oil Heating Hot Knife Cutting System High Speed Production
  • Automatic Pre-coated Film Laminating Machine Electromagnetic Oil Heating Hot Knife Cutting System High Speed Production
  • Automatic Pre-coated Film Laminating Machine Electromagnetic Oil Heating Hot Knife Cutting System High Speed Production
  • Automatic Pre-coated Film Laminating Machine Electromagnetic Oil Heating Hot Knife Cutting System High Speed Production
  • Automatic Pre-coated Film Laminating Machine Electromagnetic Oil Heating Hot Knife Cutting System High Speed Production
  • Automatic Pre-coated Film Laminating Machine Electromagnetic Oil Heating Hot Knife Cutting System High Speed Production
Place of Origin China
Brand Name FINTEECH
Certification CE
Minimum Order Quantity 1 Set
Packaging Details Export-grade wooden case with anti-rust protection, vacuum-packed components
Delivery Time 25-35 working days after deposit
Payment Terms T/T,L/C
Supply Ability 10 Sets per Month
Product Details
Max Sheet Size 1080×1000mm Min Sheet Size 350×300mm
Paper Thickness 100-500gsm Machine Speed 20-100m/min
Heating Method Electromagnetic + Oil Heating Roller Diameter 450mm
Cutting System Hot Knife Cutter Total Power 40kw
Machine Weight ≈7000Kg Machine Size 11000×2350×2100mm
Film Type OPP, BOPP, PET Lamination Type Pre-coated Film
Feeding System Servo Non-stop 12000 SPH Vacuum Pump Becker Germany
Highlight

Pre-coated Film Lamination Technology

,

Electromagnetic Oil Heating Roller System

,

Servo Non-stop Feeding System
Leave a Message
Product Description

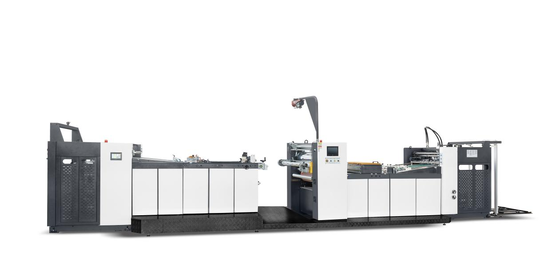

Automatic Pre-coated Film Laminating Machine

This professional pre-coated film laminating machine delivers high-efficiency lamination for offset plate, copper plate, and gray-back white paper. Featuring an advanced electromagnetic oil heating system with a 450mm diameter roller, it ensures uniform temperature distribution and superior lamination quality at speeds up to 100m/min. The hot knife cutting system enables clean edge trimming for PET, BOPP, and OPP films without tail membrane residue.

Key Features

  • Pre-coated Film Technology: Clean, solvent-free lamination process with no glue mixing required. Works with OPP, BOPP, and PET films.
  • Electromagnetic Oil Heating 450mm Roller: Intelligent electromagnetic heating combined with built-in oil circulation ensures uniform roller surface temperature. Heating efficiency exceeds 90% with PLC automatic temperature control.
  • Servo Non-stop Feeding System: High-precision four-feed four-suction flying head delivers paper within ±2mm accuracy at 12,000 sheets/hour. Shaftless servo control with pre-stacking paper structure enables continuous non-stop operation.

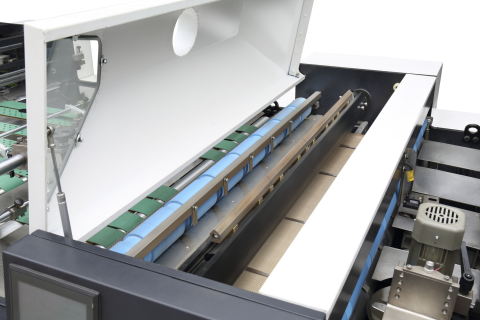

  • Hot Knife Cutting System: Computer-controlled hot knife technology precisely cuts PET and other films with neat, uniform edges and no tail membrane — eliminating extra trimming processes.
  • Becker Germany Vacuum Pump: Sensitive suction and blowing action with reliable, durable performance for stable paper feeding.
  • PLC Full Automation Control: Frequency conversion and servo-connected system allows single-person operation with synchronized speed across all sections.
  • Automatic Waste Removal: Intelligent system automatically discharges uncut products to prevent scrap from paper blocking.
  • Dual-layer Paper Receiver: Pneumatic paper alignment, electric eye auto-lowering, and deceleration function for high-speed collection. Suitable for thin paper handling.

Technical Parameters

Parameter Specification
Max Sheet Size (W*L) 1080mm * 1000mm
Min Sheet Size (W*L) 350mm * 300mm
Paper Thickness 100–500gsm
Paper Pile Height (Feeder) 1270mm
Paper Pile Height (Collector) 1270mm
Machine Speed 20–100m/min
Machine Size (L*W*H) 11000*2350*2100mm
Total Weight ≈7000Kg
Operating Power 15–25kw
Total Power 40kw
Applicable Paper Offset plate, copper plate, gray-back white
Film Types OPP, BOPP, PET
Joint Method Pre-coated Film

Applications

Ideal for commercial printing, packaging, publishing, and advertising industries. Provides high-gloss or matte surface finishing for book covers, brochures, gift boxes, shopping bags, and promotional materials. The pre-coated film process is environmentally friendly with zero solvent emissions.
