High Speed Intelligent Film Lamination Machine GS-110 Servo Control Continuous Feeding for Printed Paper Finishing

  • High Speed Intelligent Film Lamination Machine GS-110 Servo Control Continuous Feeding for Printed Paper Finishing
  • High Speed Intelligent Film Lamination Machine GS-110 Servo Control Continuous Feeding for Printed Paper Finishing
  • High Speed Intelligent Film Lamination Machine GS-110 Servo Control Continuous Feeding for Printed Paper Finishing
  • High Speed Intelligent Film Lamination Machine GS-110 Servo Control Continuous Feeding for Printed Paper Finishing
  • High Speed Intelligent Film Lamination Machine GS-110 Servo Control Continuous Feeding for Printed Paper Finishing
  • High Speed Intelligent Film Lamination Machine GS-110 Servo Control Continuous Feeding for Printed Paper Finishing
  • High Speed Intelligent Film Lamination Machine GS-110 Servo Control Continuous Feeding for Printed Paper Finishing
  • High Speed Intelligent Film Lamination Machine GS-110 Servo Control Continuous Feeding for Printed Paper Finishing
  • High Speed Intelligent Film Lamination Machine GS-110 Servo Control Continuous Feeding for Printed Paper Finishing
Place of Origin China
Brand Name FINTEECH
Certification CE
Model Number GS-110-S /GS-110-M /GS-110-L
Minimum Order Quantity 1 Set
Packaging Details wooden case
Delivery Time 25-35 working days after deposit
Payment Terms L/C,T/T
Supply Ability 10 Sets per Month
Product Details
Highlight

Intelligent Film Lamination System

,

High-speed Non-stop Laminating Machine

,

Servo Control Automatic Laminator
Leave a Message
Product Description

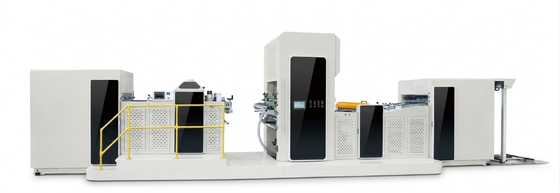

GS-110 Series High Speed Intelligent Film Lamination Machine

The GS-110 series is a professional high-speed intelligent film lamination machine engineered for superior performance, quality, and stability. Designed for diverse printed paper materials, it delivers exceptional surface finishing with customizable configurations to match your production requirements. Compatible with OPP, PET, and PVC films, it offers round knife cutting as standard with optional hot knife and chain knife slitting systems.

Key Features
1. Intelligent Feeding System
  • Shaftless Feida Feeding: Servo-controlled feeding system with flexible and convenient adjustment for various paper sizes
  • Full-page Direct Push: Reduces labor cost with automated paper positioning
  • Pre-stacking Mechanism: Non-stop feeding with continuous paper loading for uninterrupted production
  • Platen Over-limit Protection: Ensures safe and reliable operation with automatic rise and fall control
  • Higher Ground Clearance: Increased stacking height for longer runs between paper reloads
2. Precision Paper Registration
  • Servo Motor Control: Automatic paper direction alignment with simple operation
  • High-precision Positioning: Ensures accurate lamination registration every cycle
3. Dust Removal & Surface Preparation
  • Power Removing Roller: Effectively removes surface dust automatically
  • Enhanced Film Brightness: Improves lamination quality and visual appeal
  • Glue Savings: Clean surface reduces adhesive consumption
  • Optional Double/Brush Power Removing: For demanding applications requiring extra cleaning
4. Intelligent Gluing & Heating
  • Touch Screen Control: One-key start with simple operation interface
  • Automatic Film Hanging: Single-operator capability reduces labor costs
  • Precise Temperature Management: Digital temperature control for consistent lamination quality
5. Automatic Output Collection
  • Automatic Collecting: No need to change collecting holders
  • Continuous Output: Seamless finished product collection for maximum efficiency
Technical Specifications
Parameter GS-110-S GS-110-M GS-110-L
Max Sheet Size 1080*1000mm 1080*1200mm 1080*1450mm
Min Sheet Size 300*350mm
Paper Thickness 80-500 g/㎡
Laminating Speed 20-120 m/min
Total Power 60 KW
Machine Dimensions 11750*2600*3000mm 12000*2600*3000mm
Machine Weight 11,000 KG
Standard Configuration
Feature Description
Cutting System Round Knife Cutter (Standard)
Hole Drilling Sandpaper Hole Drilling System
Dust Removal Single Power Removing Roller
Paper Registration Automatic Paper Correction System
Feeding Non-stop Feeding System with Automatic Stacking
Collection Automatic Finished Product Collection
Optional Upgrades
  • Chain Knife Cutting System – for high-toughness films
  • Hot Knife Cutting System – for precision slitting
  • Double Power Removing Roller – enhanced dust removal
  • Brush Power Removing – additional surface cleaning
Applications

Specifically designed for laminating various printed paper materials including book covers, magazines, packaging boxes, posters, labels, and commercial printing products. Compatible with OPP, PET, and PVC lamination films for diverse finishing requirements.
