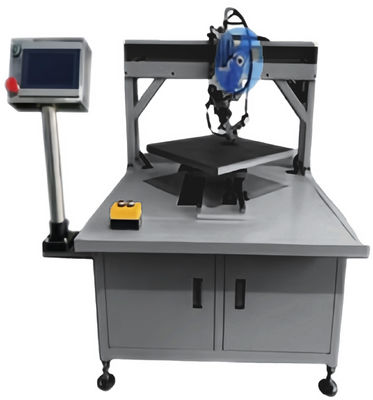

Compact Double Sided Tape Applicator Machine 60HZ Customization For Production Needs
| Place of Origin | CHINA |
|---|---|
| Brand Name | FINTEECH |
| Certification | CE |
| Model Number | GPC-T55/T70 GPC-H1108/H2015 |
| Minimum Order Quantity | 1set |
| Packaging Details | wooden case |
| Delivery Time | 20-30 days |
| Payment Terms | TT/LC |
| Supply Ability | 10 sets per day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Adjustable Tape Length, Easy To Operate | Voltage | 110V/220V |
|---|---|---|---|
| Power Source | Electric | Application | Packaging |
| Control Method | Manual/Automatic | Model | TPM-100 |
| Tape Length | Customizable | Color | White |
| Frequency | 50Hz/60Hz | ||
| Highlight | Compact Double Sided Tape Applicator Machine,60HZ Double Sided Tape Applicator Machine,Customization Double Sided Tape Pasting Machine |
||
Product Description
Multi-Angle Double-Sided Adhesive Tape Pasting Machine GPC Series
Key Features
- Ideal for short-run products requiring double-sided tape application
- Flexible setup to meet different production needs
- Enables quick double-sided tape changes
- Provides higher precision in adhesive application with easy size and angle adjustment
- Simple operation and parameter adjustments
- Vacuum pump system securely fixes materials in place
Technical Specifications
Compact Models
| Model | GPC-T55 | GPC-T70 |
|---|---|---|
| Effective working size | 550 * 550mm | 700 * 700mm |
| Overall dimensions | 1110 * 1550 * 1400mm | 1400 * 1700 * 1400mm |
| Weight | 200kg | 260kg |
| Power | 1.2KW, 220V, 50/60HZ | |
| Thickness of tape | 0.05-2mm | |
| Width of tape | 1.5-50mm | |
| Working speed | 600mm/s | |
| Overlap precision | ±1mm | |
| Product fix method | Vacuum | |
Note: The table can be rotated 360° to accommodate multi-angle gluing applications.
Large Format Models
| Model | GPC-H1108 | GPC-H2015 |
|---|---|---|
| Effective working size | 1100 * 800mm | 2000 * 1500mm |
| Overall dimensions | 1900 * 1300 * 1800mm | 2900 * 2300 * 1800mm |
| Weight | 700kg | 1300kg |
| Power | 3KW, 220V, 50/60HZ | |
| Thickness of tape | 0.05-2mm | |
| Width of tape | 1.5-50mm | |
| Working speed | 600mm/s | |
| Overlap precision | ±1mm | |
| Product fix method | Vacuum | |
Note: The head can be rotated 360° to accommodate multi-angle gluing applications.
