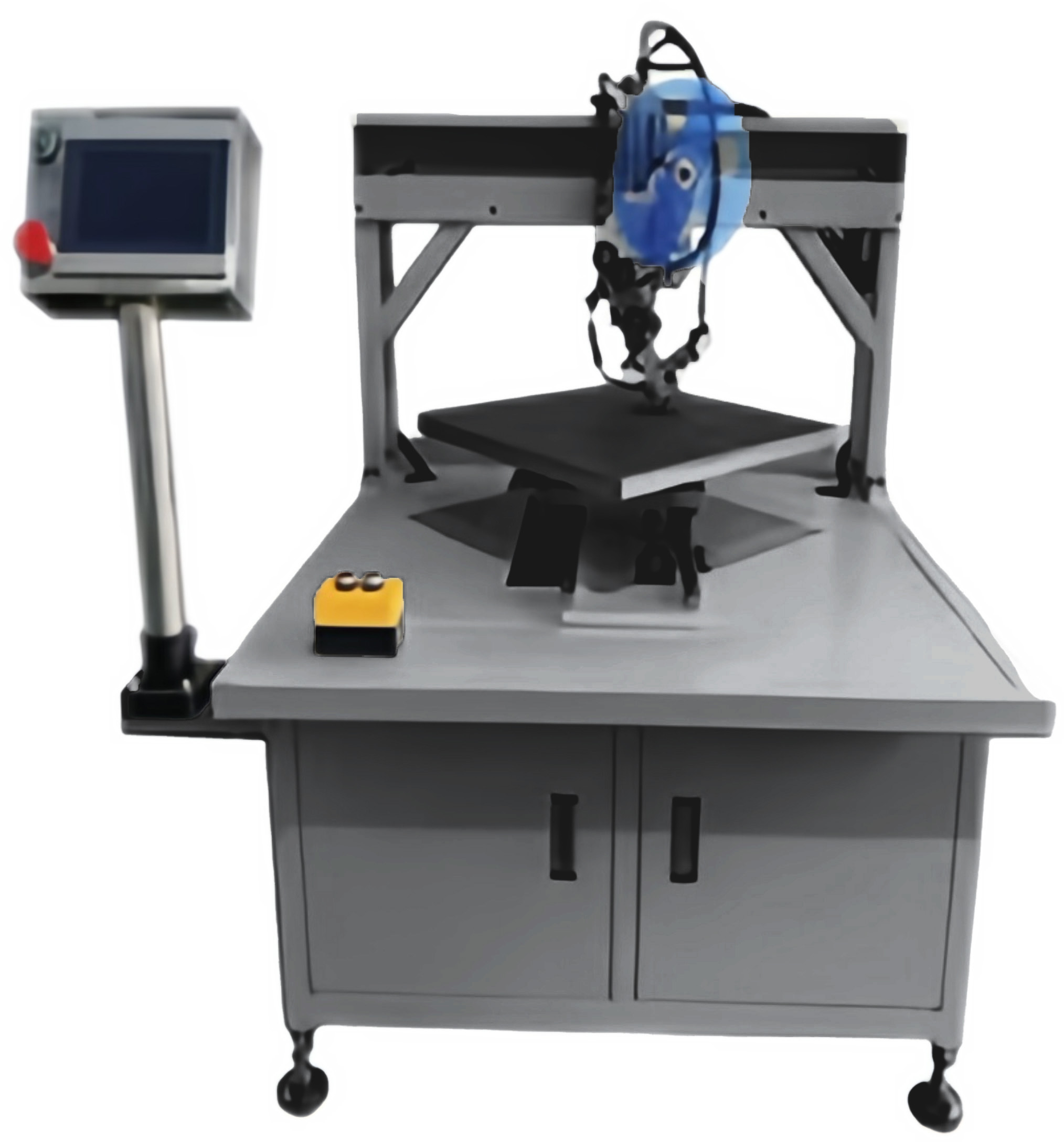

High Precision Tape Pasting Machine High Speed Tape Applicator With Vacuum Pump
| Place of Origin | CHINA |
|---|---|
| Brand Name | FINTEECH |
| Certification | CE |
| Model Number | GPC-T55/T70 |
| Minimum Order Quantity | 1set |
| Packaging Details | wooden case |
| Delivery Time | 20-30 days |
| Payment Terms | TT/LC |
| Supply Ability | 10 sets per day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Additional Features | Adjustable Tape Tension, Automatic Cutting And Pasting | Control System | Digital |
|---|---|---|---|
| Material | Metal | Tape Length | Unlimited |
| Suitable For | Carton Sealing | Color | White |
| Highlight | High Precision Tape Pasting Machine,Vacuum Pump Tape Pasting Machine,Vacuum Pump high speed tape applicator |
||
Product Description
Easy to Operate Tape Pasting Machine with Vacuum Pump
High Precision Adhesive Application for GPC-T55 and GPC-T70 Models
Key Features
- Ideal for short-run products requiring double-sided tape application
- Flexible setup to accommodate different production requirements
- Enables rapid double-sided tape changes for efficient operation
- Provides high precision in adhesive application with adjustable angles
- Simple operation with easy parameter adjustments
- Vacuum pump ensures secure paper fixation during operation
Product Specifications
| Attribute | Value |
|---|---|
| Additional Features | Adjustable tape tension, automatic cutting and pasting |
| Control System | Digital |
| Material | Metal |
| Tape Length | Unlimited |
| Suitable For | Carton sealing |
| Color | White |
Technical Parameters
| Model | GPC-T55 | GPC-T70 |
|---|---|---|
| Effective working size | 550×550mm | 700×700mm |
| Overall dimensions | 1110×1550×1400mm | 1400×1700×1400mm |
| Weight | 200kg | 260kg |
| Power | 1.2KW, 220V, 50/60HZ | |
| Thickness of tape | 0.05-2mm | |
| Width of tape | 1.5-50mm | |
| Working Speed | 600mm/S | |
| Overlap Precision | ±1mm | |
| Product fix method | Vacuum | |
Note: The table can be rotated 360 degrees to accommodate multi-angle gluing applications.
