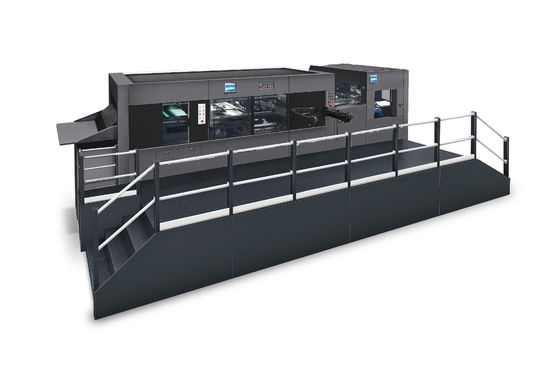

380V 50Hz Cardboard Creasing Machine 8000s/H Easy Maintenance And Operation
| Place of Origin | CHINA |
|---|---|
| Brand Name | FINTEECH |
| Certification | CE |
| Model Number | FB-HT1060SCE |
| Minimum Order Quantity | 1set |
| Packaging Details | wooden case |
| Delivery Time | 20-30 days |
| Payment Terms | TT/LC |
| Supply Ability | 10 sets per day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| After-sales Service Provided | Engineers Available To Service Machinery Overseas,Video Technical Support,Field Installation,commissioning And Training,Online Support | Condition | New |
|---|---|---|---|
| Type | Die-cutting Machine,Paper Cutting Machine,Label Cutter,Other,Packing Machine | Computerized | Yes,Semi-Automatic,No |
| Product Name | Automatic Roll Film/ Mylar/Aluminum Foil Die Cutting Machine,automatic Paper Die Cutting Punching Machine Price,BASCOCUT Multi Sheet Cutter,Automatic Rotary Die Cutting Machine For Corrugated Carton Box,small Size Die Cutting Machine | Function | Die Cutting,stamping,Automatic Die-cutting Machine In Electric Field,Manual Creasing,High Effieciency |
| Usage | Sticker,trademark,Food Forming Machine,label,heat Transfer Industry | Automatic Grade | Automatic,Semi-Automatic |
| Color | Requirement,Optional Color | ||
| Highlight | 380V 50Hz Cardboard Creasing Machine,8000s/H Cardboard Creasing Machine,Easy Maintenance Cutting And Creasing Machine |
||
Product Description
Technical Parameter
| Model | FB-HT1060SCE |
| Maximum Sheet Size | 1060*760mm |
| Minimum Sheet Size | 400*350mm |
| Maximum Cutting Size | 1060*745mm |
| Minimum Width of Double Cuts | 5mm |
| Minimum Gripper Margin | 9~17mm |
| Cutting Rule Height | 23.8mm |
| Inner Chase Size | 1080*770mm |
| Stock Range | Paper: from 80 to 2000g/m2, 0.1~2mm, corrugated board: up to 4mm |
| Die Cutting Accuracy | ≤±0.075mm |
| Max.die Cutting Force | 300T |
| Max.working Speed | 8000s/h |
| Maximum Pile Height at Feeder-Normal Mode | 1800mm |
| Maximum Pile Height at Feeder-Non-stop Mode | 1520mm |
| Maximum Pile Height at Delivery | 1580mm |
| Machine Dimensions | 10298*5857*2657mm (L*W*H)(L: paper prepared track included, W: platform included) |
| Net Weight of Machine | 22000kg |
| Main Motor Power | 15KW |
| Total Power Required | 26KW |
| Air Requirement | Pressure: 0.6~0.7Mpa, Flow: ≥0.37m3/min |
