Automated Creasing And Die Cutting Machine Customized With Stripping Blanking
| Place of Origin | CHINA |
|---|---|
| Brand Name | FINTEECH |
| Certification | CE |
| Model Number | FB-HT1060SCE |
| Minimum Order Quantity | 1set |
| Packaging Details | wooden case |
| Delivery Time | 20-30 days |
| Payment Terms | TT/LC |
| Supply Ability | 10 sets per day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| After-sales Service Provided | Engineers Available To Service Machinery Overseas,Video Technical Support,Field Installation,commissioning And Training,Online Support | Condition | New |
|---|---|---|---|
| Type | Die-cutting Machine,Paper Cutting Machine,Label Cutter,Other,Packing Machine | Computerized | Yes,Semi-Automatic,No |
| Product Name | Automatic Roll Film/ Mylar/Aluminum Foil Die Cutting Machine,automatic Paper Die Cutting Punching Machine Price,BASCOCUT Multi Sheet Cutter,Automatic Rotary Die Cutting Machine For Corrugated Carton Box,small Size Die Cutting Machine | Function | Die Cutting,stamping,Automatic Die-cutting Machine In Electric Field,Manual Creasing,High Effieciency |
| Usage | Sticker,trademark,Food Forming Machine,label,heat Transfer Industry | Automatic Grade | Automatic,Semi-Automatic |
| Color | Requirement,Optional Color | ||
| Highlight | Automated Creasing And Die Cutting Machine,Customized Creasing And Die Cutting Machine,Customized Cutting And Creasing Machine |
||
Product Description

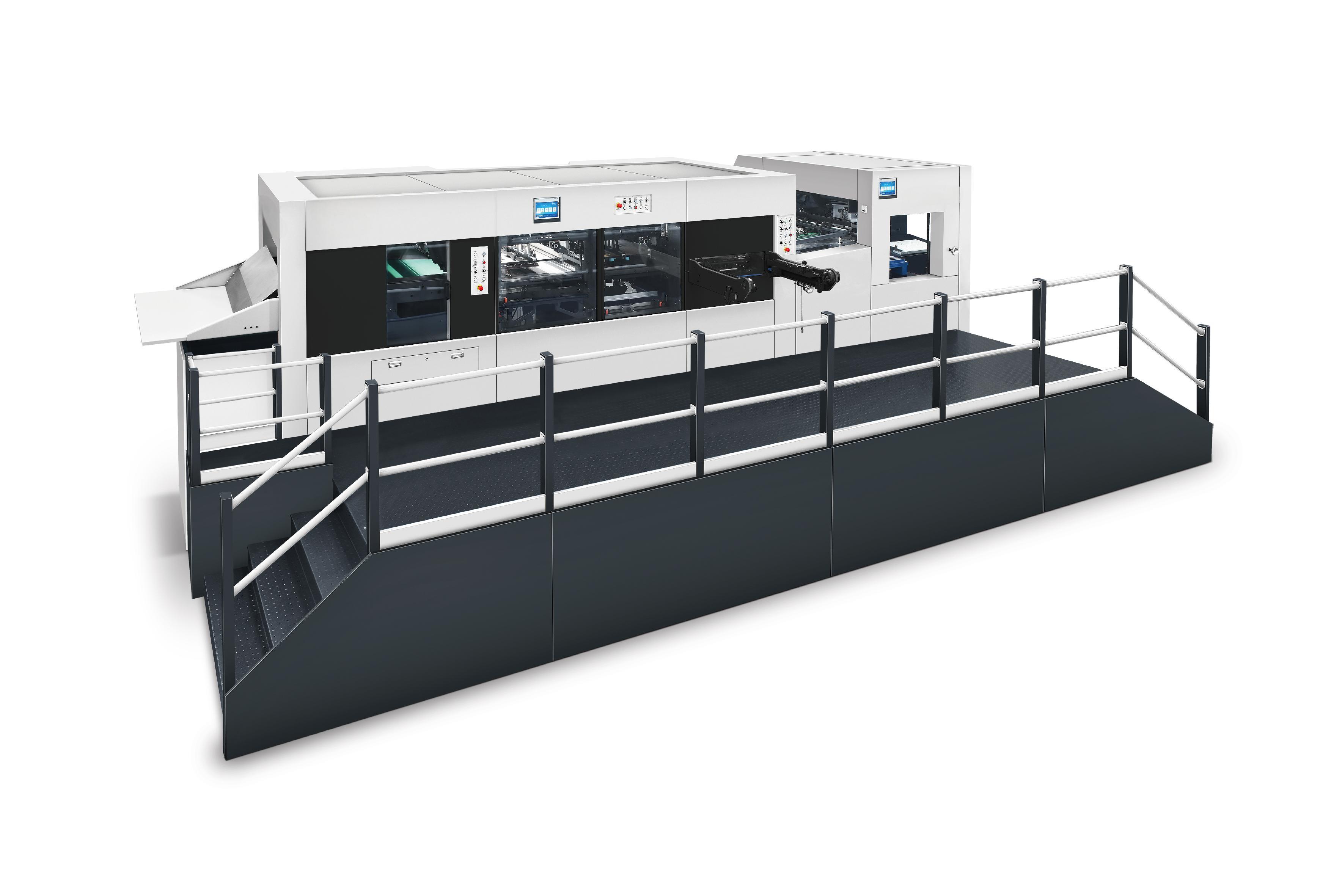

Automatic Die Cutting and Creasing Machine With Stripping Blanking
Product Overview
This high-performance automatic die cutting and creasing machine combines precision engineering with advanced functionality for industrial applications. Designed for efficiency and accuracy, it handles various materials including paper, corrugated board, and specialty films.
Key Features
- Advanced automatic stripping and blanking system
- Precision die cutting with ±0.075mm accuracy
- Versatile material handling from 80 to 2000g/m² paper
- High-speed operation up to 8000 sheets/hour
- Robust 300-ton cutting force capacity
- Flexible configuration options for various production needs
Technical Specifications
| Model | FB-HT1060SCE |
|---|---|
| Maximum Sheet Size | 1060×760mm |
| Minimum Sheet Size | 400×350mm |
| Maximum Cutting Size | 1060×745mm |
| Stock Range | Paper: 80-2000g/m² (0.1-2mm), Corrugated board: up to 4mm |
| Die Cutting Accuracy | ≤±0.075mm |
| Maximum Working Speed | 8000 sheets/hour |
| Main Motor Power | 15KW |
| Total Power Requirement | 26KW |
Product Attributes
| After-sales Service | Overseas engineer support, Video technical assistance, Field installation and training, Online support |
|---|---|
| Machine Type | Die-cutting Machine, Paper Cutting Machine, Label Cutter, Packing Machine |
| Automation Level | Automatic, Semi-Automatic |
| Primary Functions | Die cutting, Stamping, Creasing, High-efficiency processing |
| Applications | Stickers, Labels, Trademarks, Heat transfer materials, Food packaging forming |
| Customization | Color options available to meet specific requirements |
Physical Dimensions
Machine Size: 10298×5857×2657mm (L×W×H) including paper preparation track and platform
Net Weight: 22000kg
Pneumatic Requirements
Air Pressure: 0.6-0.7Mpa
Air Flow: ≥0.37m³/min
