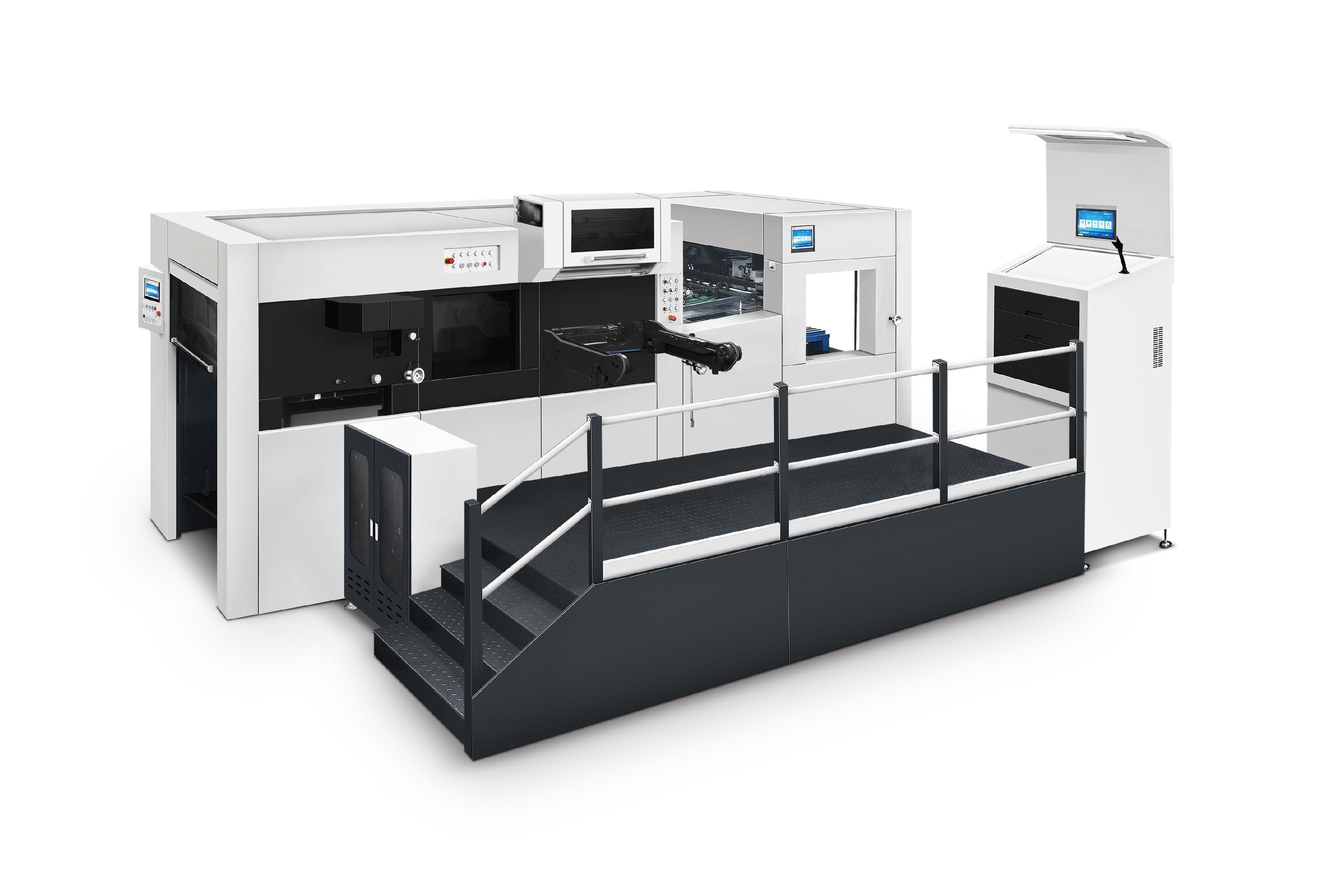

Automated High Speed Die Cutting Machine 1060×760mm With Stripping Blanking
| Place of Origin | CHINA |
|---|---|
| Brand Name | FINTEECH |
| Certification | CE |
| Model Number | FB-HT1060AT |
| Minimum Order Quantity | 1set |
| Packaging Details | wooden case |
| Delivery Time | 20-30 days |
| Payment Terms | TT/LC |
| Supply Ability | 10 sets per day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warranty | 1 Year,2 Years,One Year,3 Years | After-sales Service Provided | Engineers Available To Service Machinery Overseas,Video Technical Support,Field Installation,commissioning And Training,Online Support |
|---|---|---|---|
| Condition | New | Type | Die-cutting Machine,Paper Cutting Machine,Label Cutter,Other,Packing Machine |
| Computerized | Yes,Semi-Automatic,No | Product Name | Automatic Roll Film/ Mylar/Aluminum Foil Die Cutting Machine,automatic Paper Die Cutting Punching Machine Price,BASCOCUT Multi Sheet Cutter,Automatic Rotary Die Cutting Machine For Corrugated Carton Box,small Size Die Cutting Machine |
| Function | Die Cutting,stamping,Automatic Die-cutting Machine In Electric Field,Manual Creasing,High Effieciency | Usage | Sticker,trademark,Food Forming Machine,label,heat Transfer Industry |
| Automatic Grade | Automatic,Semi-Automatic | Color | Requirement,Optional Color |
| Highlight | Automated High Speed Die Cutting Machine,1060×760mm High Speed Die Cutting Machine,Stripping Blanking Flatbed Die Cutting Machine |
||
Product Description
Automatic High Speed Hot Stamping Die Cutting Machine with Stripping Blanking
Product Overview
This advanced die cutting machine combines high-speed operation with precision hot stamping capabilities, designed for industrial-scale production of labels, stickers, packaging materials, and more. The fully automated system ensures efficient processing of various materials from thin paper to corrugated board.
Key Features
- Precision feeding system handles materials from 90g/m² to 1000g/m²
- Non-contact ultrasonic double sheet detection prevents material damage
- Automatic non-stop collecting device for continuous operation
- 20-zone individually adjustable heating system for precise temperature control
- Advanced gripper bar system with smooth operation
- Germany Becker oil-free vacuum pump and blower
- Centralized automatic lubrication system
Technical Specifications
| Model | FB-HT1060AT |
| Maximum Sheet Size | 1060×760mm |
| Minimum Sheet Size | 400×350mm |
| Maximum Cutting Size | 1060×745mm |
| Cutting Precision | ≤±0.075mm |
| Maximum Working Speed | 8000 sheets/hour |
| Stock Range | Paper: 80-2000g/m² (0.1-2mm) Corrugated board: up to 4mm |
| Heating System | 20 zones, 40-180℃ adjustable |
| Main Motor Power | 15KW |
| Total Power | 56KW |
| Machine Dimensions | 8017×4518×2762mm |
| Net Weight | 24 tons |
Product Attributes
| Attribute | Value |
|---|---|
| Warranty | 1-3 Years |
| After-sales Service | Overseas engineer support, Video technical support, Field installation and training, Online support |
| Type | Die-cutting Machine, Paper Cutting Machine, Label Cutter, Packing Machine |
| Automation | Automatic/Semi-Automatic |
| Functions | Die cutting, Stamping, Creasing |
| Applications | Stickers, Trademarks, Labels, Heat transfer materials, Packaging |
