Heavy Duty CNC Gluing Plotter GA2115 Hot Melt Cold Glue System Large Format Automatic Gluing Machine

  • Heavy Duty CNC Gluing Plotter GA2115 Hot Melt Cold Glue System Large Format Automatic Gluing Machine
  • Heavy Duty CNC Gluing Plotter GA2115 Hot Melt Cold Glue System Large Format Automatic Gluing Machine
  • Heavy Duty CNC Gluing Plotter GA2115 Hot Melt Cold Glue System Large Format Automatic Gluing Machine
Place of Origin China
Brand Name FINTEECH
Certification CE
Model Number GA2115
Minimum Order Quantity 1 Set
Packaging Details Export-grade reinforced plywood case with moisture-proof film and foam cushioning
Delivery Time 20-30 working days
Payment Terms T/T,L/C
Supply Ability 10 Sets per Month
Product Details
Gluing Head Type Hot Melt And Cold Glue System Maximum Gluing Size 2100 X 1500 Mm
Maximum Paper Size 2180 X 1580 Mm Minimum Paper Size 100 X 100 Mm
Paper Stack Thickness 500 Mm Air Pressure 6-8 Bar
Total Power 2.5 KW Machine Dimensions 5300 X 2270 X 1750 Mm
Machine Weight 2 Tons Control System PLC With Touchscreen
Programming Mode Teach-Type Adjustment Application Large Box Gluing, Display Gluing, Window Patching
Highlight

Large Format CNC Gluer

,

Automatic Glue Dispensing Machine

,

Heavy Duty Gluing Plotter
Leave a Message
Product Description

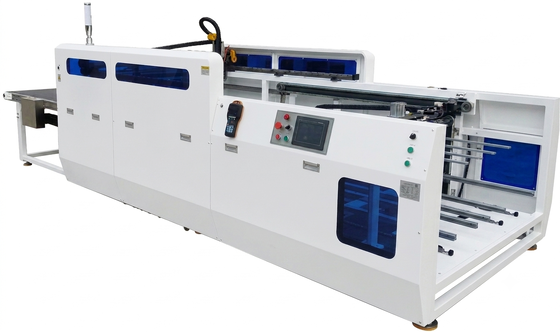

Heavy-Duty CNC Gluing Plotter GA2115 — Large Format Dual-Glue System for Industrial Packaging

The GA2115 Heavy-Duty CNC Gluing Plotter is a large-format glue dispensing solution built for high-volume industrial packaging production. Featuring a massive 2100 x 1500 mm gluing area and a powerful dual hot melt and cold glue system, this machine handles oversized boxes, large-scale POP displays, and complex packaging assemblies with ease. Its automatic paper loading, teach-type programming, and precision CNC servo control make it the go-to choice for manufacturers seeking productivity and reliability.

Heavy Duty CNC Gluing Plotter GA2115 Hot Melt Cold Glue System Large Format Automatic Gluing Machine

Key Features

Feature Description
Large Format Gluing 2100 x 1500 mm maximum gluing area accommodates oversized packaging formats, large corrugated displays, and industrial-scale box production.
Dual Glue System Integrated hot melt and cold glue (PVA/water-based) delivery system enables rapid switching between adhesive types for different substrates and applications.
Full Automation Automatic paper positioning, loading, and glue dispensing with minimal operator intervention. 500mm paper stack capacity ensures extended unattended operation.
Heavy-Duty Construction Reinforced steel frame with precision-machined guide rails. 2-ton build weight ensures exceptional stability during high-speed operation and consistent glue placement accuracy.
Servo-Driven Precision CNC servo motor control delivers accurate XY positioning, smooth glue lines, and uniform bead output — critical for high-end packaging quality standards.
Teach-Type Programming Intuitive teach-mode setup with PLC touchscreen interface. Operators can program complex glue paths in minutes without specialized training or G-code knowledge.

Technical Specifications

  • Maximum Gluing Area: 2100 x 1500 mm
  • Maximum Paper Size: 2180 x 1580 mm
  • Minimum Paper Size: 100 x 100 mm
  • Paper Stack Thickness: 500 mm
  • Air Pressure Requirement: 6-8 bar
  • Total Power: 2.5 KW
  • Machine Weight: 2 Tons
  • Machine Dimensions: 5300 x 2270 x 1750 mm

Applications

The GA2115 is purpose-built for demanding industrial packaging applications that require large-format gluing capability:

  • Large Corrugated Box Production — Handles oversized cartons and heavy-duty corrugated packaging for industrial goods, furniture, and appliances.
  • Floor-Standing POP Displays — Precise glue placement for large-scale retail displays, promotional stands, and exhibition booth materials.
  • Multi-Panel Display Assembly — Accurate and consistent adhesive application across large-format multi-panel structures.
  • Window Patching for Large Packaging — Clean glue lines for transparent windows on large-format folding cartons and gift boxes.
  • Specialty Packaging — Custom gluing patterns for luxury rigid boxes, wine packaging, and high-end cosmetic cartons.

Why Choose the GA2115 CNC Gluing Plotter?

  1. Unmatched Format Capacity — With a 2100x1500mm gluing area, this machine handles projects that smaller gluers simply cannot accommodate.
  2. Dual Adhesive Versatility — Hot melt for instant bonding and cold glue for cost-effective large-area application — both in a single machine.
  3. Production-Grade Reliability — 2-ton heavy-duty construction and industrial-grade components deliver consistent performance in multi-shift operations.
  4. Easy Integration — Teach-type programming and PLC control enable rapid job changeover, minimizing downtime between production batches.

Contact us today for a customized quotation, factory visit arrangement, or detailed video demonstration of the GA2115 in action.
