Fully Automatic CNC Gluer GA1015 Hot Melt Cold Glue System Teach Type Box Display Gluing Plotter

  • Fully Automatic CNC Gluer GA1015 Hot Melt Cold Glue System Teach Type Box Display Gluing Plotter
  • Fully Automatic CNC Gluer GA1015 Hot Melt Cold Glue System Teach Type Box Display Gluing Plotter
  • Fully Automatic CNC Gluer GA1015 Hot Melt Cold Glue System Teach Type Box Display Gluing Plotter
  • Fully Automatic CNC Gluer GA1015 Hot Melt Cold Glue System Teach Type Box Display Gluing Plotter
  • Fully Automatic CNC Gluer GA1015 Hot Melt Cold Glue System Teach Type Box Display Gluing Plotter
Place of Origin China
Brand Name FINTEECH
Certification CE
Model Number GA1015
Minimum Order Quantity 1 Set
Packaging Details wooden case
Delivery Time 15-25 working days
Payment Terms T/T,L/C
Supply Ability 10 Sets per Month
Product Details
Gluing Head Type Hot Melt And Cold Glue System Maximum Gluing Size 1000 X 1500 Mm
Maximum Paper Size 1580 X 1080 Mm Minimum Paper Size 100 X 100 Mm
Paper Stack Thickness 500 Mm Air Pressure 6-8 Bar
Total Power 2 KW Machine Dimensions 2500 X 1200 X 1750 Mm
Machine Weight 800 KG Control System PLC With Touchscreen
Programming Mode Teach-Type Adjustment Application Box Gluing, Display Gluing, Window Patching
Highlight

Dual Glue System CNC Gluer

,

Hot Melt Cold Glue Machine

,

Teach Type Gluing Plotter
Leave a Message
Product Description

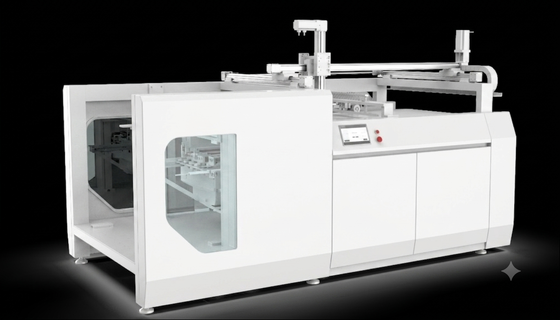

Fully Automatic CNC Gluer GA1015 — Compact Dual-Glue Solution for Precision Packaging

The GA1015 Fully Automatic CNC Gluer is an advanced glue dispensing and plotting machine engineered for precision packaging applications. Equipped with a dual hot melt and cold glue system, this compact industrial gluer delivers exceptional versatility for box assembly, POP display fabrication, window patching, and various packaging production tasks. Its teach-type programming interface makes operation intuitive, reducing training time and boosting workflow efficiency.

Key Features

Feature Description
Dual Glue System Compatible with both hot melt adhesive and cold glue (water-based/PVA), enabling flexible material bonding across paper, cardboard, and coated substrates.

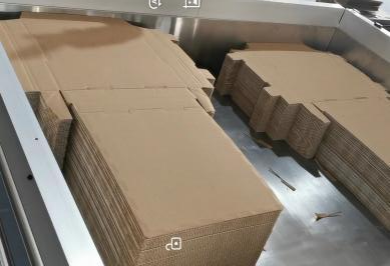

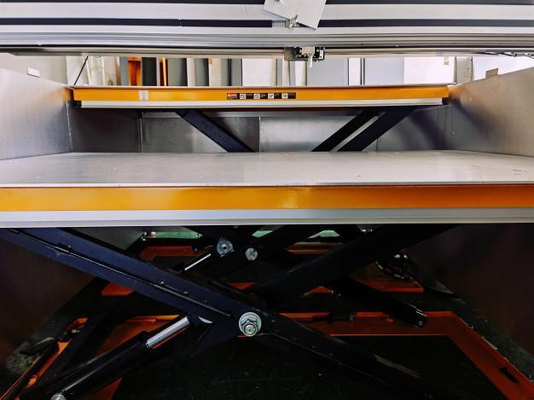

Automatic Paper Loading Automatic positioning and loading of paper stacks up to 500mm thickness — eliminates manual paper picking and accelerates production throughput.
Teach-Type Programming Intuitive teach-mode adjustment allows operators to program glue paths without coding knowledge. CAD file import supported for complex patterns.

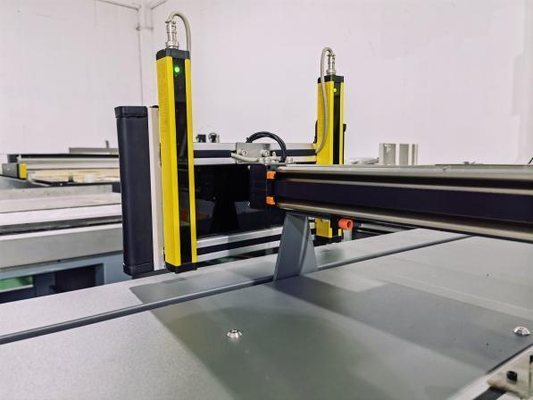

Precision Glue Control CNC servo-driven XY motion ensures accurate glue line placement with even adhesive output — no dripping, no stringing, and consistent bead size.
Compact Industrial Design 2500 x 1200 x 1750 mm footprint fits standard workshop layouts. Heavy-duty steel frame ensures long-term stability and vibration resistance.
PLC Touchscreen Control User-friendly HMI with digital parameter settings for glue flow rate, speed, and path preview. Supports multi-language interface.

Technical Specifications

  • Maximum Gluing Area: 1000 x 1500 mm
  • Maximum Paper Size: 1580 x 1080 mm
  • Minimum Paper Size: 100 x 100 mm
  • Paper Stack Thickness: 500 mm
  • Air Pressure Requirement: 6-8 bar
  • Total Power: 2 KW
  • Machine Weight: 800 KG
  • Machine Dimensions: 2500 x 1200 x 1750 mm

Applications

The GA1015 CNC Gluer is ideal for a wide range of packaging and display applications, including:

  • Carton Box Gluing — Precision adhesive application for folding cartons, corrugated boxes, and rigid boxes.
  • POP Display Assembly — Accurate glue placement for point-of-purchase displays, countertop stands, and promotional packaging.
  • Window Patching — Clean and precise glue lines for transparent window film attachment on paperboard packaging.
  • Envelope and Folder Gluing — Consistent adhesive application for envelopes, presentation folders, and stationery products.
  • Label and Tag Attachment — Spot gluing for labels, tags, and inserts on packaging materials.

Why Choose the GA1015 CNC Gluer?

  1. Dual Glue Flexibility — Switch between hot melt and cold glue systems to match material requirements without investing in separate machines.
  2. Operator-Friendly — Teach-type programming reduces the learning curve to hours instead of days. New operators become productive quickly.
  3. Compact & Efficient — Space-saving design with 1000x1500mm gluing capacity handles the majority of standard packaging formats.
  4. Low Maintenance — Industrial-grade components and sealed glue delivery system minimize downtime and maintenance costs.

Contact us today for a detailed quotation, video demonstration, or to schedule a factory visit.
