Flated Cutting Creasing Machine Corrguated board Die cutting Machine
| Place of Origin | CHINA |
|---|---|
| Brand Name | FINTEECH |
| Certification | CE |
| Minimum Order Quantity | 1 set |
| Packaging Details | wooden case |
| Delivery Time | 20-30 days |
| Payment Terms | L/C,T/T |
| Supply Ability | 10 sets per day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warranty | 1 Year | Condition | New |
|---|---|---|---|
| Packaging Material | Wood | ||
| Highlight | High Speed Cutting And Creasing Machine,cutting and creasing machine for crafts,industrial die cutting creasing machine |
||
Product Description

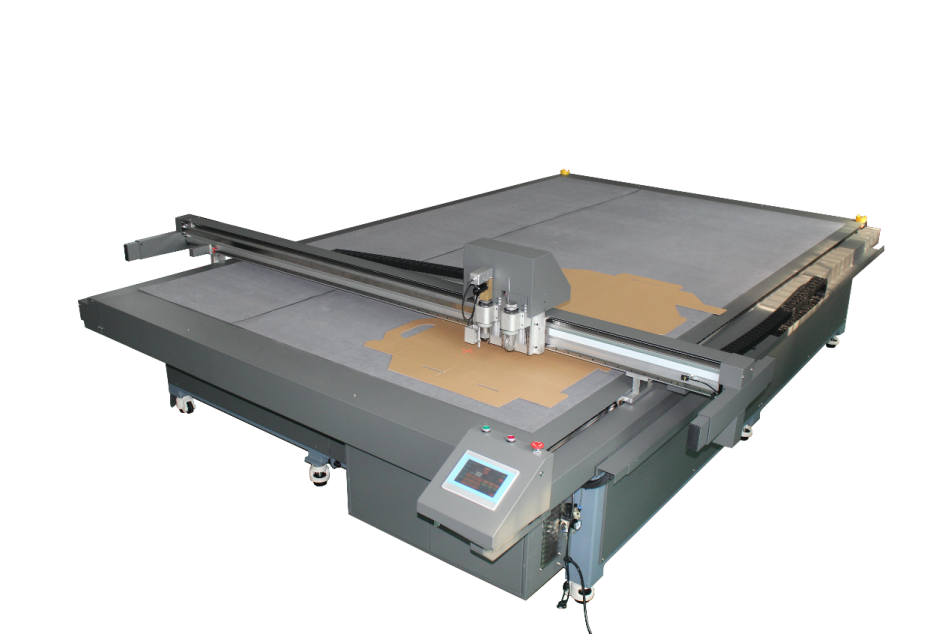

Cutting and Creasing Machine
This high-speed flatbed digital cutting machine is equipped with multiple tools including vibrating knife, creasing wheel, drag knife, V-cut knife, and pen. It handles various materials such as PP sheets, corrugated paper, honeycomb board, card paper, foam, grey board, KT board, PVC expansion sheet, and other materials commonly used in advertising and display industries.
Main Features
- New steel frame design for enhanced stability
- Two independent module design for broader applications
- Exchangeable tools for better expansion
- Honeycomb bed with vacuum area design for stronger suction
- Maximum cutting thickness up to 60mm
Machine Details
Steel Structure
Honeycomb Aluminum Bed
Whole design, won't bend
Motor and Driver
Mitsubishi brand servo motor and driver
Transfer Port
Ethernet port, USB port, Udisk
Tool Head
Available Tools
| Standard Tool | Optional Tool |
|---|---|
|
Oscillation knife
|
Creasing Wheel
|
|
Plotting Pen
|
Laser light
|
|
Drag knife
|
Camera
|
Control System
Touch Screen Interface
Technical Specifications
Supported Languages: English, Spanish, French, German, Polish, Portuguese, Russian, Korean, Vietnamese, Indonesian, Italian, Turkish, Arabic, Finnish, etc.
File Formats: DXF, PLT, AI, PDF, etc.
Vacuum Pump: 7.5KW with 8 zones
Maximum Cutting Speed: 1500mm/s
Maximum Cutting Thickness: 60mm
Compatible Materials: Foam, EVA, PVC, PP Sheets, polypropylene corrugated sheet, corrugated cardboard up to 60mm, cartons, laminates, printing blankets, coating plates, preprinted vinyl films, reflective sheeting, textile and technical fabrics, etc.
