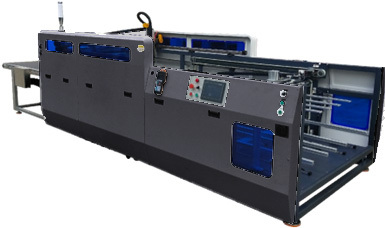

cnc gluing machine
| Place of Origin | CHINA |
|---|---|
| Brand Name | FINTEECH |
| Certification | CE |
| Model Number | GA1015/GA2115 |
| Minimum Order Quantity | 1set |
| Packaging Details | wooden case |
| Delivery Time | 20-30 days |
| Payment Terms | TT/LC |
| Supply Ability | 10 sets per day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Cutting Method | XY Axis | Application | Metal Cutting |
|---|---|---|---|
| Control System | PLC | Material | Metal |
| Model | Cutting Machine | Type | Automatic |
| Usage | Industrial | ||
| Highlight | Metal XY Cutting Machine,100*100mm XY Cutting Machine,6 Bar Air Pressure XY gluer |
||
Product Description
Features:
- Automatic positioning and loading of paper,
- No need for manual paper picking work,
- Easier to glue the boxes, displays, window patching, etc,
- Teach-type adjustment, easier to learn and operate
- Accurate glue painting.
- The glue comes out evenly.
Technical Parameters:
| Model | GA1015 | GA2115 |
|---|---|---|
| Gluing head | Hot melt and cold glue system | Hot melt and cold glue system |
| Maximum Gluing size | 1000*1500mm | 2100*1500mm |
| Max paper size | 1580*1080mm | 2180*1580mm |
| Min Paper size | 100*100mm | 100*100mm |
| Paper stack thickness | 500mm | 500mm |
| Air pressure | 6-8bar | 6-8bar |
| Power | 2KW | 2.5KW |
| Machine Size | 2500*1200*1750mm | 5300*2270*1750mm |
| Machine Weight | 800KG | 2Ton |
