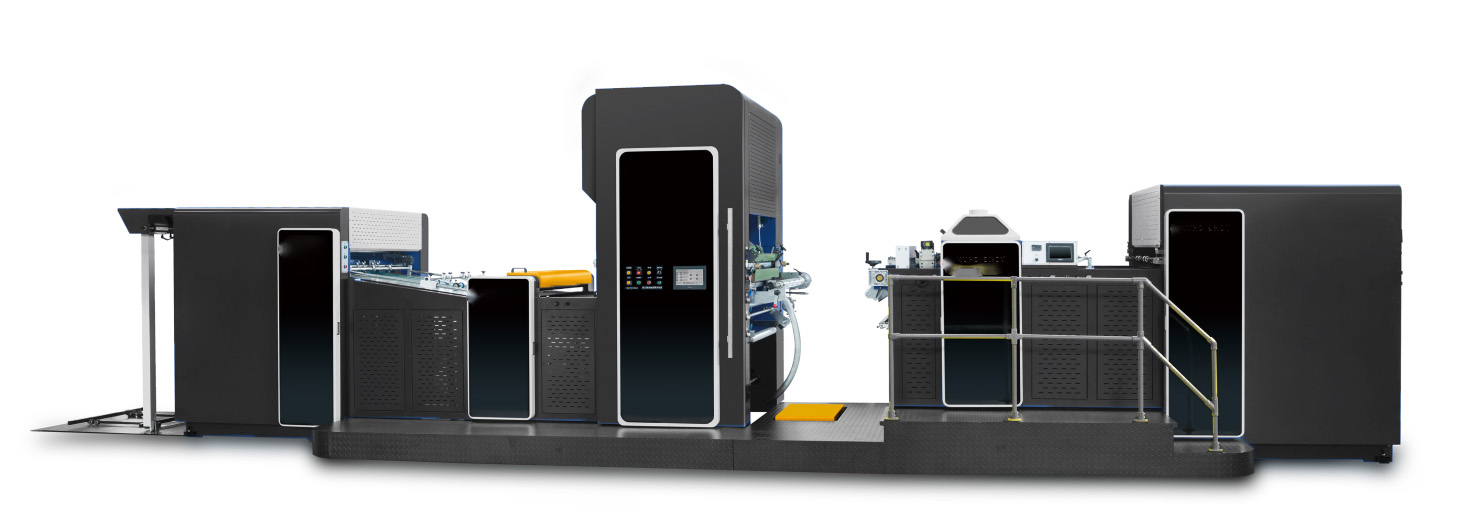

Customizable Automatic Lamination Machine 1000 Sheets/H Paper Die Cutter Machine
| Place of Origin | CHINA |
|---|---|
| Brand Name | FINTEECH |
| Certification | CE |
| Model Number | GS-110 |
| Minimum Order Quantity | 1set |
| Packaging Details | wooden case |
| Delivery Time | 20-30 days |
| Payment Terms | TT/LC |
| Supply Ability | 10 sets per day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Automatic Grade | Automatic | Total Weight | 11000kgs |
|---|---|---|---|
| Power | 60kw | Other Name | Paper Die Cutter |
| Machine Size | 11750*2600*3000mm/12000*2600*3000mm | Cutting Speed | 1000 Sheets/hour |
| Highlight | Customizable Automatic Lamination Machine,1000 Sheets/H Automatic Lamination Machine,Customizable Paper Die Cutter Machine |
||
You can tick the products you need and communicate with us in the message board.
Product Description
Professional Film Lamination Machine with Intelligent Functionality
High-speed, high-quality automatic film lamination machine designed for various printed paper materials, delivering superior surface finishing with customizable configurations.
Key Specifications
| Attribute | Value |
|---|---|
| Automatic Grade | Automatic |
| Total Weight | 11000 kgs |
| Power | 60kw |
| Alternative Name | Paper die cutter |
| Machine Size | 11750*2600*3000mm / 12000*2600*3000mm |
| Cutting Speed | 1000 sheets/hour |
Technical Parameters
| Model | GS-110-S | GS-110-M | GS-110-L |
|---|---|---|---|
| Max sheet size | 1080*1000mm | 1080*1200mm | 1080*1450mm |
| Min sheet size | 300*350mm | 300*350mm | 300*350mm |
| Paper thickness | 80-500 g/㎡ | 80-500 g/㎡ | 80-500 g/㎡ |
| Speed | 20-120m/min | 20-120m/min | 20-120m/min |
| Machine total Power | 60 KW | 60 KW | 60 KW |
| Machine size | 11750*2600*3000mm | 11750*2600*3000mm | 12000*2600*3000mm |
| Weight | 11000 KGS | 11000 KGS | 11000 KGS |
Standard Configuration
- Round Knife cutter
- Hole drilling by sandpaper
- Single power Removing roller
- Automatic paper correction
- Non-stop feeding system
- Automatic collecting final product
- Feeding with stacking automatically
Optional Features
Available for all models:
- Chain knife cutting
- Hot knife cutting
- Double power removing roller
- Brush power removing
Machine Details
Application Examples
Workshop Installation
