Intelligent Book Binding Machine Fully Automatic CNC Binding Machine 14KW Powerful
| Place of Origin | CHINA |
|---|---|
| Brand Name | FINTEECH |
| Certification | CE |
| Model Number | TET5O/5FE |
| Minimum Order Quantity | 1set |
| Packaging Details | wooden case |
| Delivery Time | 20-30 days |
| Payment Terms | TT/LC |
| Supply Ability | 10 sets per day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Automatic Grade | Automatic | Stripping Precision | 99% |
|---|---|---|---|
| Usage | Label, Paperboard | Cutting Material | Cardboard, Corrugated Paper |
| Condition | New | Packaging Type | Case |
| Highlight | Intelligent Book Binding Machine,Fully Automatic Book Binding Machine,14KW CNC Binding Machine |
||
Product Description
Fully Intelligent Ellipse Binding Machine [CNC Fully Automatic Adjustment]
Product Specifications
| Automatic Grade | Automatic |
| Stripping Precision | 99% |
| Usage | Label, Paperboard |
| Cutting Material | Cardboard, Corrugated Paper |
| Condition | New |
| Packaging Type | Case |
Product Description
The TET5O/5FE fully intelligent book binding machine represents 21st century high-tech multifunctional binding technology. This advanced system utilizes PIC Motion controller technology for rapid adjustment of clamp opening size, back cover positioning, creasing wheel alignment, book tab clipping, and cover specification sizing. The machine automatically measures book core thickness and features variable frequency speed control with PLC motion controller technology.
Key Features
- Advanced position recognition and automatic detection alarm system
- User-friendly touch screen interface
- Back glue station with rear gel function and precision creasing wheel
- Automated book stacking with single-operator functionality
- Flexible glue systems: sticker back system and optional PUR upper glue system
- Fast-swap interface between EVA and PUR glue systems
- Vertical book binding capability for superior book back protection
- Dual functionality for both sewn and glued book binding
- Ideal for graphic digital inkjet applications
Heavy-Duty Construction
Features a double column-guided twin-cam upper-sealing mechanism with exceptional durability and precision:
- Superior wear resistance
- High precision operation
- Powerful clamp force
- Stable top-down movement
- Rigid, non-deforming front and back clamp plates
This patented upper-sealing clamp mechanism represents the most advanced technology in international binding machines.
Technical Parameters
| Binding size | Max: 450×308mm / Min: 140×105mm |
| Binding thickness | 2-50mm |
| Binding speed | Max: 2100 books/hour |
| Power requirement | 14Kw |
| Weight | 2200Kg |
| Dimensions | 4390×2130×1350mm |
Technical Diagram

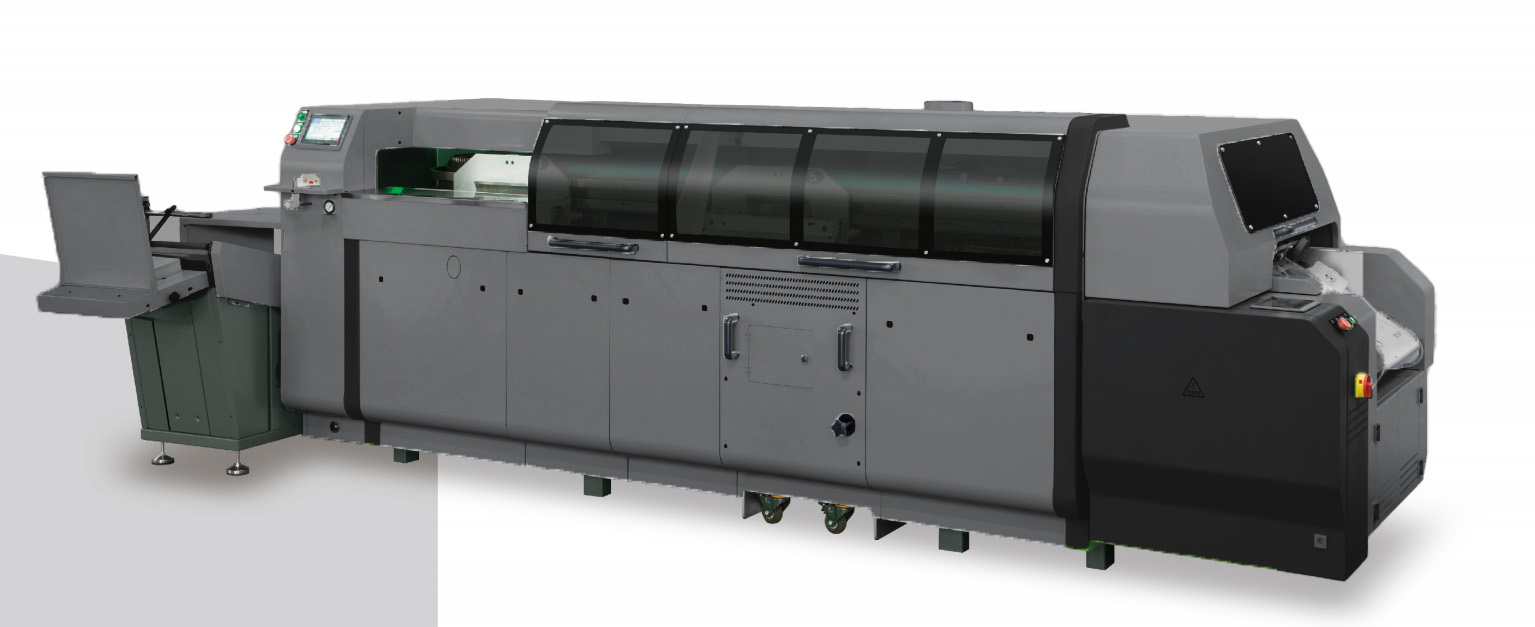

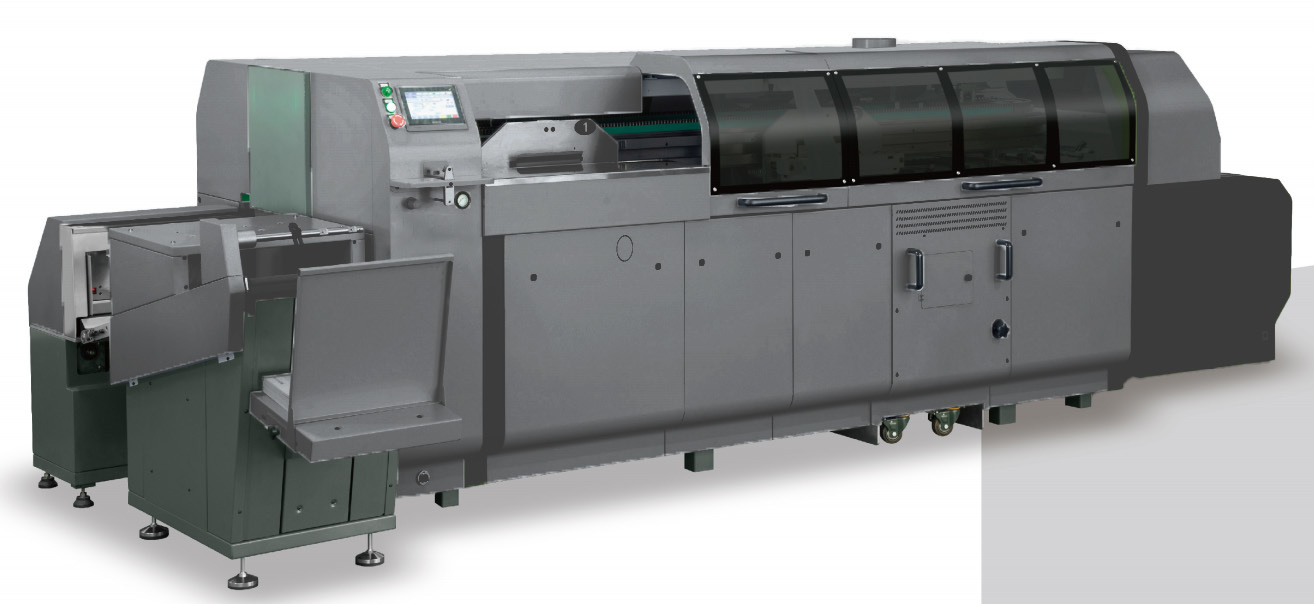

Machine Photo
