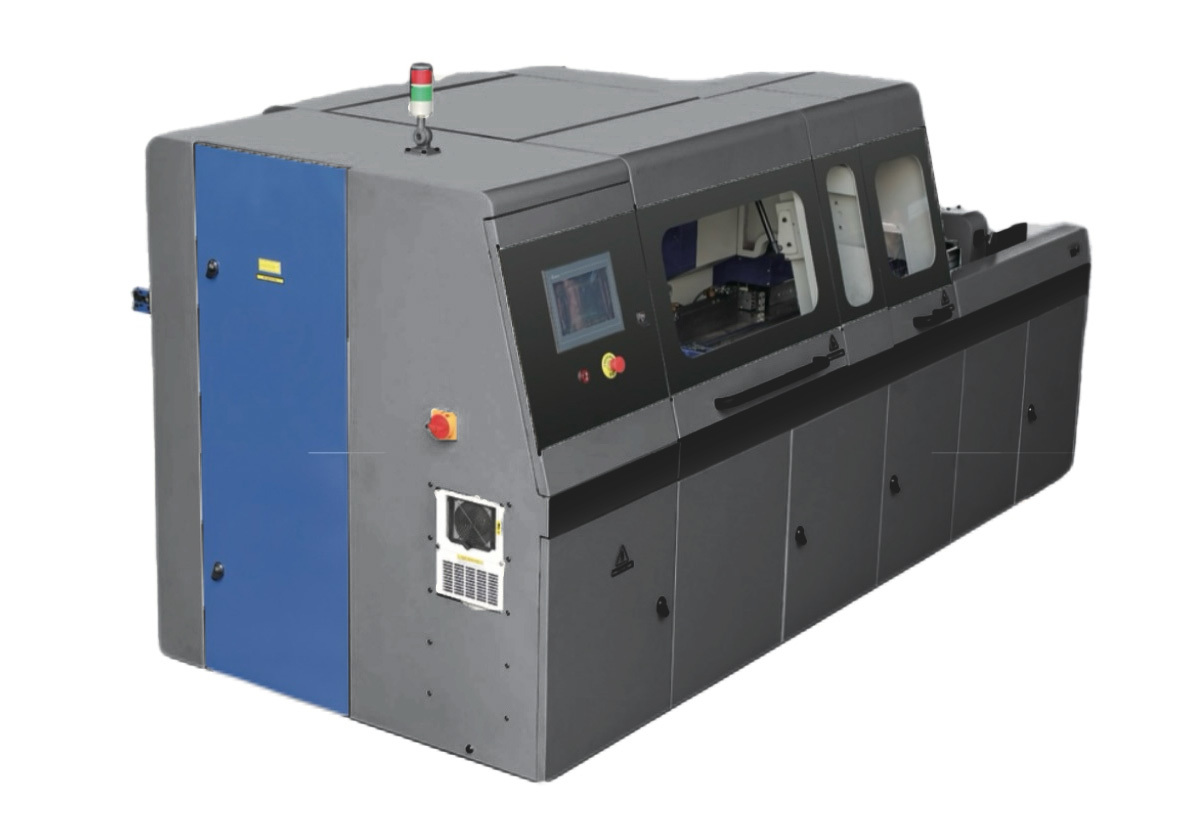

Fully Automatic 7KW Three Knife Trimmer Flexible 340×300mm 1300 Cuts/Hour
| Place of Origin | CHINA |
|---|---|
| Brand Name | FINTEECH |
| Certification | CE |
| Model Number | FS-1000VB |
| Minimum Order Quantity | 1set |
| Packaging Details | wooden case |
| Delivery Time | 20-30 days |
| Payment Terms | TT/LC |
| Supply Ability | 10 sets per day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Tape | Double-seat Die Cutting Machine | Driven Type | Electric |
|---|---|---|---|
| Safety System | Emergency Stop | Color | Requirement |
| Function | Mounting Machine | Cutting Precision | Paper Box Die Cutting Machine |
| Computerized | Yes | ||
| Highlight | Fully Automatic Three Knife Trimmer,7KW 3 Knife Book Trimmer,1300 Cuts/Hour Three Knife Trimmer Machine |
||
Product Description
Fully Automatic Three-Sided Book Trimmer
Product Specifications
| Attribute | Value |
|---|---|
| Tape | Double-seat Die Cutting Machine |
| Driven Type | Electric |
| Safety System | Emergency Stop |
| Color | Requirement |
| Function | Mounting Machine |
| Cutting Precision | Paper Box Die Cutting Machine |
| Computerized | Yes |
Machine Overview
This fully automatic Three Knife Trimmer represents the latest intelligent model designed for the digital printing industry. Featuring servo system transmission, it connects seamlessly with various glue binding machines while offering intelligent adjustment and plate replacement capabilities that minimize operator skill requirements.
Key Features
- High precision cutting with exceptional stability and reliability
- Flexible plate changing system for efficient small batch processing
- Intelligent adjustment for books and periodicals of varying sizes
- Touch screen interface for precise dimensional control
- Automatic safety shutdown when cutting parameters mismatch
- Programmable presser foot adjustments
Technical Parameters
| Model | FS-1000VB |
|---|---|
| Max. Cutting Size | 340×300mm |
| Min. Cutting Size | 145×100mm |
| Max. Cutting Height | 60mm |
| Min. Cutting Book Height | 10mm |
| Min. Single Cutting Height | 5mm |
| Cutting Speed | 1300 cuts/hour |
| Power | 7KW |
| The Pressure | 6Pu |
| Overall Dimensions | 3020×2196×1710mm (L×W×H) |
| Machine Weight | 2400KG |
Intelligent Control System
The intuitive touch screen interface allows operators to set precise length, width, and height parameters for book trimming. All settings can be saved with custom naming for repeat jobs, while built-in safety features prevent operation when cutting dimensions are inconsistent with settings.
Advanced Book Handling
The redesigned book delivery pusher automatically adjusts for varying book thicknesses without manual intervention, ensuring consistent positioning for precise trimming.
Precision Alignment System
The automatic gear gauge system enables touch screen adjustment of trimming edge dimensions, complete with automatic alignment functionality for perfect results every time.
Efficient Feeding Mechanism
The horizontal feeding device automatically adapts to book dimensions based on touch screen settings, with quick-adjust channels for smooth material flow and optimal throughput.
