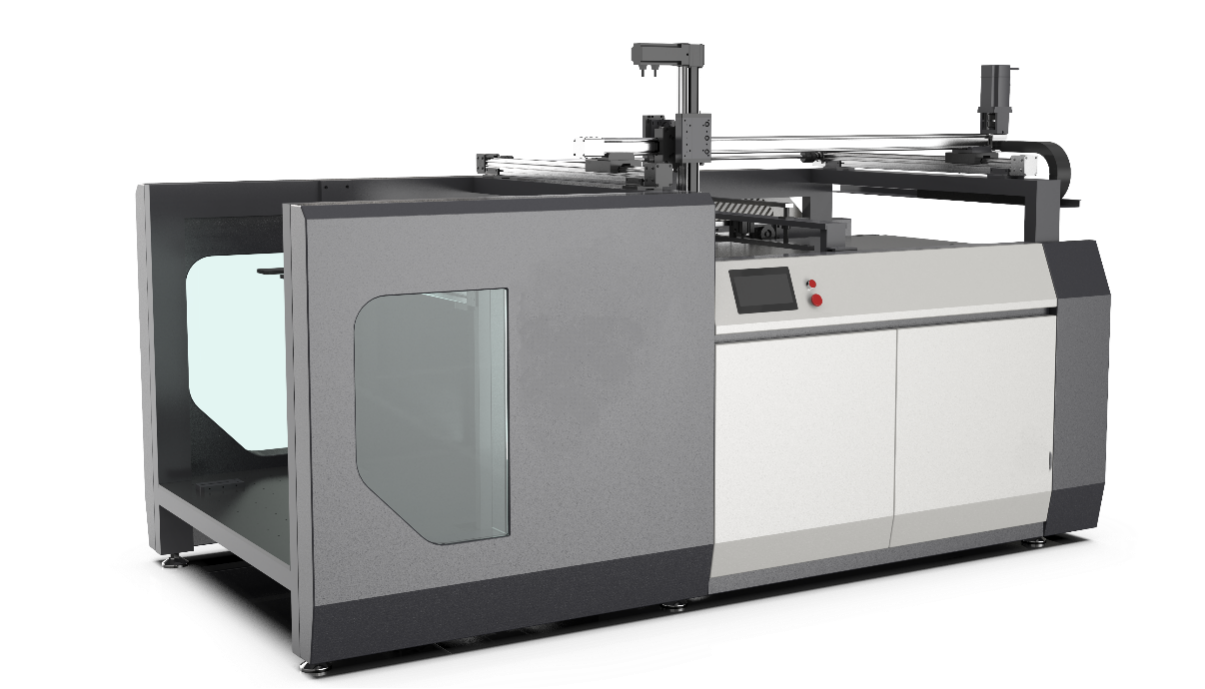

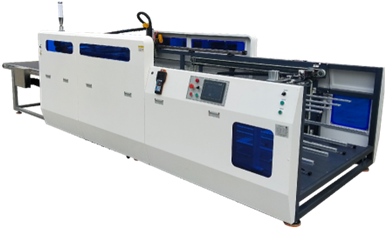

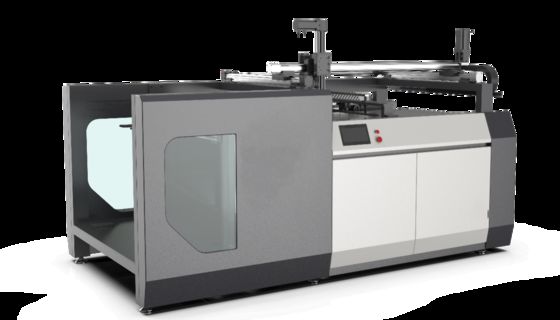

CNC Gluer Automatic Cutting Machine PLC Control Easy Learning And Operation
| Place of Origin | CHINA |
|---|---|
| Brand Name | FINTEECH |
| Certification | CE |
| Model Number | GA1015/GA2115 |
| Minimum Order Quantity | 1set |
| Packaging Details | wooden case |
| Delivery Time | 20-30 days |
| Payment Terms | TT/LC |
| Supply Ability | 10 sets per day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Cutting Method | XY Axis | Application | Metal Cutting |
|---|---|---|---|
| Control System | PLC | Material | Metal |
| Model | Cutting Machine | Type | Automatic |
| Usage | Industrial | ||
| Highlight | CNC Gluer Automatic Cutting Machine,Easy Operation Automatic Cutting Machine,PLC Control Automatic XY Cutter |
||
Product Description
Fully Automatic CNC Gluer
Product Specifications
| Cutting Method | XY Axis |
| Application | Metal Cutting |
| Control System | PLC |
| Material | Metal |
| Model | Cutting Machine |
| Type | Automatic |
| Usage | Industrial |
Key Features
- Automatic positioning and loading of paper
- Eliminates manual paper picking work
- Optimized for gluing boxes, displays, and window patching
- Teach-type adjustment for easy learning and operation
- Precision glue application with even distribution
Technical Parameters
| Model | GA1015 | GA2115 |
|---|---|---|
| Gluing head | Hot melt and cold glue system | Hot melt and cold glue system |
| Maximum Gluing size | 1000×1500mm | 2100×1500mm |
| Max paper size | 1580×1080mm | 2180×1580mm |
| Min Paper size | 100×100mm | 100×100mm |
| Paper stack thickness | 500mm | 500mm |
| Air pressure | 6-8bar | 6-8bar |
| Power | 2KW | 2.5KW |
| Machine Size | 2500×1200×1750mm | 5300×2270×1750mm |
| Machine Weight | 800KG | 2Ton |
